Concept

LKB UltraPure is an automatic or manually operated butterfly valve for

on/off duties. The UltraPure execution is designed and documented to

meet the demand in industries like BioPharm and Personal Care.

Working principles

LKB UltraPure is either remote controlled by means of an air-actuator

or manually by means of a handle.

The actuator is designed so that an axial movement of a piston is

transformed into a 90° rotation of a shaft. The torque of the actuator is

increased when the valve disc contacts the seal of the valve.

The air-actuator comes in three standard versions, normally closed

(NC), normally open (NO) and air/air activated (A/A).

Two actuator sizes, ø85 mm and ø133 mm, cover all valve sizes and

are available in two versions, LKLA and LKLA-T (T for mounting of

indication unit on actuator).

The handle for manual operation mechanically locks the valve in its

open or closed position.

Handles are available in 2 positions, 4 positions, regulating 90° and

lockable multi-position.

The valve can be supplied with either welding or clamp connections.

TECHNICAL DATA

Valve

Max. product pressure: . . . . . . . . . . . . . .1000 kPa (10 bar).

Min. product pressure: . . . . . . . . . . . . . .Full vacuum.

Temperature range: . . . . . . . . . . . . . . . . .-10°C to +95°C*

Actuator

Max. air pressure: . . . . . . . . . . . . . . . . . .700 kPa (7 bar).

Min. air pressure, NC and NO: . . . . . . . . .400 kPa (4 bar).

Temperature range: . . . . . . . . . . . . . . . . .-25°C to +90°C.

Air consumption (litres free air) - ø85 mm: . .0.24 x p (bar).

Air consumption (litres free air) - ø133 mm: .0.95 x p (bar).

Weight: . . . . . . . . . . . . . . . . . . . . . . . .- ø85 mm: 3 kg.

- ø133 mm: 12 kg.

*) SIP (steam in place) up to 140°C is possible, but only when using

EPDM and without operating it. Any seal material must be 95°C before

operation.

PHYSICAL DATA

Product wetted steel part . . . . 1.4404 (316L) acc. to EN 10088

Other steel parts . . . . . . . . . . 1.4301 (304) acc. to EN 10088

Bushings for valve disc . . . . .PVDF

Elastomers

Product wetted seals . . . . . . .EPDM acc. to FDA and USP Class VI

Surface specification (Product wetted steel parts)

ISO 2037 / DIN . . . . . . . . . .Internal: 0.5 μm

ASME BPE designation: SF1

External: Semi-bright

ASME BPE* . . . . . . . . . . . . .Internal: 0.5 μm

ASME BPE designation: SF1

External: Semi-bright

ASME BPE* . . . . . . . . . . . . .Internal: 0.4 μm electro polish

ASME BPE designation: SF4

External: Semi-bright

According to ASME BPE 2009 table SF-3

Connections

Weld ends** . . . . . . . . . . . . .Matching tubes and fittings: ISO 2037

/ DIN / ASME BPE

Acc. to ISO, DIN or ASME BPE

Clamp ends . . . . . . . . . . . . .Matching tubes and fittings: ISO 2037

/ DIN / ASME BPE

Acc. to ISO, DIN or ASME BPE

Weld ends on ASME BPE valves are according to ASME BPE 2009

316L Table DT-3 with low sulfur and suitable for orbital welding

Actuator

Actuator body: . . . . . . . . . . . 1.4307 (304L)

Piston: . . . . . . . . . . . . . . . .Light alloy

Air/air version (for ø85 mm: Bronze).

Seals: . . . . . . . . . . . . . . . . .NBR

Housing for switches: . . . . . .PPO

Options

A. Product wetted seals: FPM (acc. to FDA and USP Class VI), Q and PFA

B. ThinkTop® for control and indication.*

C. Indication unit with micro switches.*

D. Indication unit with inductive proximity switches.*

E. Indication unit with Hall proximity switches.*

F. Explosion proof indication unit with inductive proximity switches.*

G. Bracket for actuator.

H. Handle with two or four positions.

I. Handle for electrical position indication.

J. Handle with infinite intermediate positions.

K. Multipositioning handle**.

L. Lockable Multiposition Handle. Padlock can be mounted as shown

in fig. 3.

Note! Padlock is not delivered.

M. Special cap for 90° turned handle position.

N. Service tool for actuator.

O. Service tool for fitting 25-38 mm (DN25 - DN40) valve discs.

For further information see Product Catalogue chapter "Control

& Indication".

A padlock can be mounted on the Lockable Multiposition

Handle as shown in the opposite figure.

Note! Padlock is not delivered.

Documentation

All valves are delivered with Alfa Laval Q-doc.

Note!

For further details, see also ESE01699.

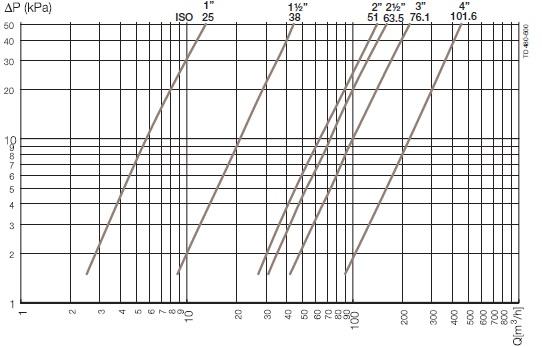

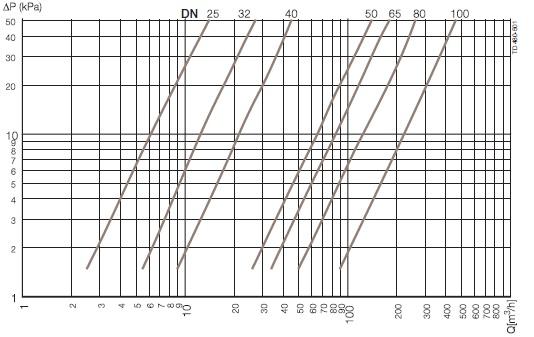

Capacity/Pressure drop diagrams

>

NOTE!

For the diagrams the following applies:

Medium: Water (20°C).

Measurement: In accordance with VDI 2173.

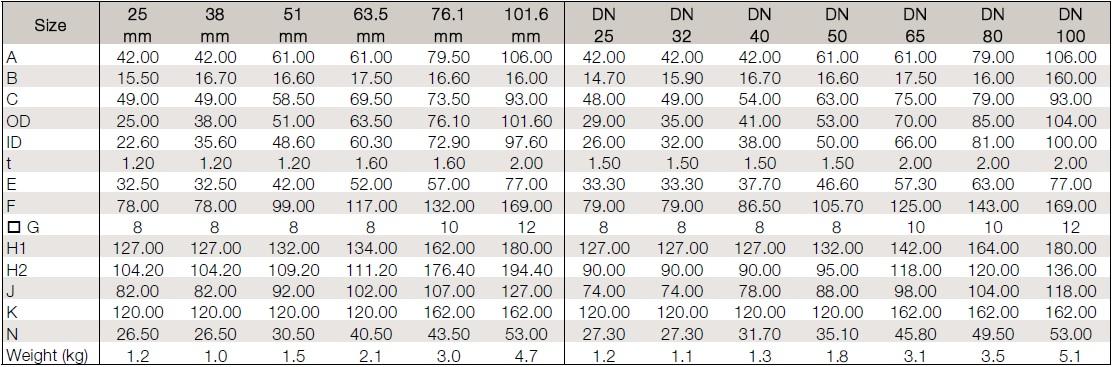

Dimensions (mm)

LKB UltraPure

NOTE! Weights are for valves with welding ends and handles.
