Concept

LKB is a sanitary automatically or manually operated butterfly valve for

use in stainless steel pipe systems.

Working principle

LKB is either remote-controlled by means of an actuator or manually

operated by means of a handle.

The actuator is made in three standard versions, normally closed (NC),

normally open (NO) and air/air activated (A/A).

The actuator is designed so that an axial movement of a piston is

transformed into a 90° rotation of a shaft. The torque of the actuator is

increased when the valve disc contacts the seal ring of the butterfly

valve.

The handle for manual operation mechanically locks the valve in its

open or closed position. The handles for the valve sizes DN125 and

DN150, which are designed for locking in two intermediate positions,

enable adjusting of the valve, so that the flow rate can be regulated.

TECHNICAL DATA

Valve

Max. product pressure: . . . . . . . . . . 1000 kPa (10 bar).

Min. product pressure: . . . . . . . . . . Full vacuum.

Temperature range: . . . . . . . . . . . . . -10°C to +95°C.

max. temperature if valve

operates

Actuator

Max. air pressure: . . . . . . . . . . . . . . 700 kPa (7 bar).

Min. air pressure, NC and NO: . . . . . 400 kPa (4 bar).

Temperature range: . . . . . . . . . . . . . -25°C to +90°C.

Air consumption (litres free air) - ø85

mm: . . . . . . . . . . . . . . . . . . . . . . 0.24 x p (bar).

Air consumption (litres free air) - ø133

mm: . . . . . . . . . . . . . . . . . . . . . . 0.95 x p (bar).

Weight: . . . . . . . . . . . . . . . . . . . . - ø85 mm: 3 kg.

- ø133 mm: 12 kg.

PHYSICAL DATA

Valve

Product wetted steel parts: . . .1.4307 (304L) or 1.4404 (316L).

Other steel parts: . . . . . . . . . 1.4307 (304L).

Rubber grades: . . . . . . . . . .Q, EPDM, FPM, HNBR or PFA.

Bushes for valve disc: . . . . . .PVDF.

Finish: . . . . . . . . . . . . . . . .Semi-bright.

Actuator

Actuator body: . . . . . . . . . . . 1.4307 (304L).

Piston: . . . . . . . . . . . . . . . .Light alloy (for ø85 mm: Bronze).

Air/air version.

Seals: . . . . . . . . . . . . . . . . .Nitrile (NBR).

Standard design 2.1

LKB is available in three versions, LKB for ISO tubes, LKB-2 for DIN

tubes and LKB-F for flange connection.

The valve consists of two valve body halves, valve disc, bushes for the

disc stem and seal ring. LKB-F also consists of two flanges and two

flange seal rings. The valve is assembled by means of screws and nuts.

Two actuator sizes, ø85 mm and ø133 mm, cover all valve sizes. The

actuator is available in two versions, LKLA and LKLA-T.

The actuator is fitted onto the valve by means of a bracket and screws.

(The actuator can also be fitted onto ball valves by means of special

brackets).

The handle for manual operation is fitted onto the valve by means of a

cap/block system and a screw.

The valve has welding ends as standard, but LKB and LKB-2 can also

be supplied with fittings.

Options

A. Male parts or clamp liners in accordance with required standard.

B. ThinkTop® for control and indication.

C. Indication unit with micro switches.

D. Indication unit with inductive proximity switches.

E. Indication unit with Hall proximity switches.

F. Explosion proof indication unit with inductive proximity switches.

G. Bracket for actuator. (Also for ball valves).

H. Handle with two or four positions (standard on DN125 and DN150).

I. Handle for electrical position indication.

J. Handle with infinite intermediate positions (not for DN125 and DN150).

K. Multipositioning handle**.

L. Lockable Multiposition Handle. Padlock can be mounted as shown

in fig. 3.

Note! Padlock is not delivered.

M. Special cap for 90° turned handle position.

N. Service tool for actuator.

O. Service tool for fitting 25-38 mm (DN25 - DN40) valve discs.

For further information see Product Catalogue chapter "Control

& Indication".

A padlock can be mounted on the Lockable Multiposition

Handle as shown in the opposite figure.

Note! Padlock is not delivered.

Note!

For further details, see also IM 70730.

Capacity/Pressure drop diagrams

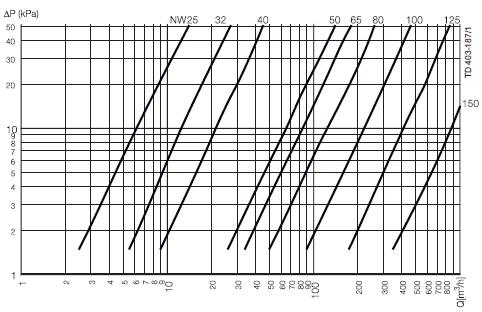

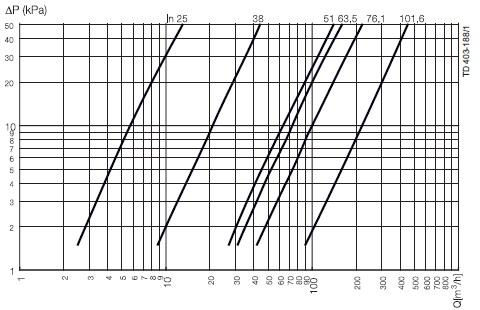

LKB and LKB-F fully open LKB-2 and LKB-F fully open

NOTE!

For the diagrams the following applies:

Medium: Water (20°C).

Measurement: In accordance with VDI 2173.

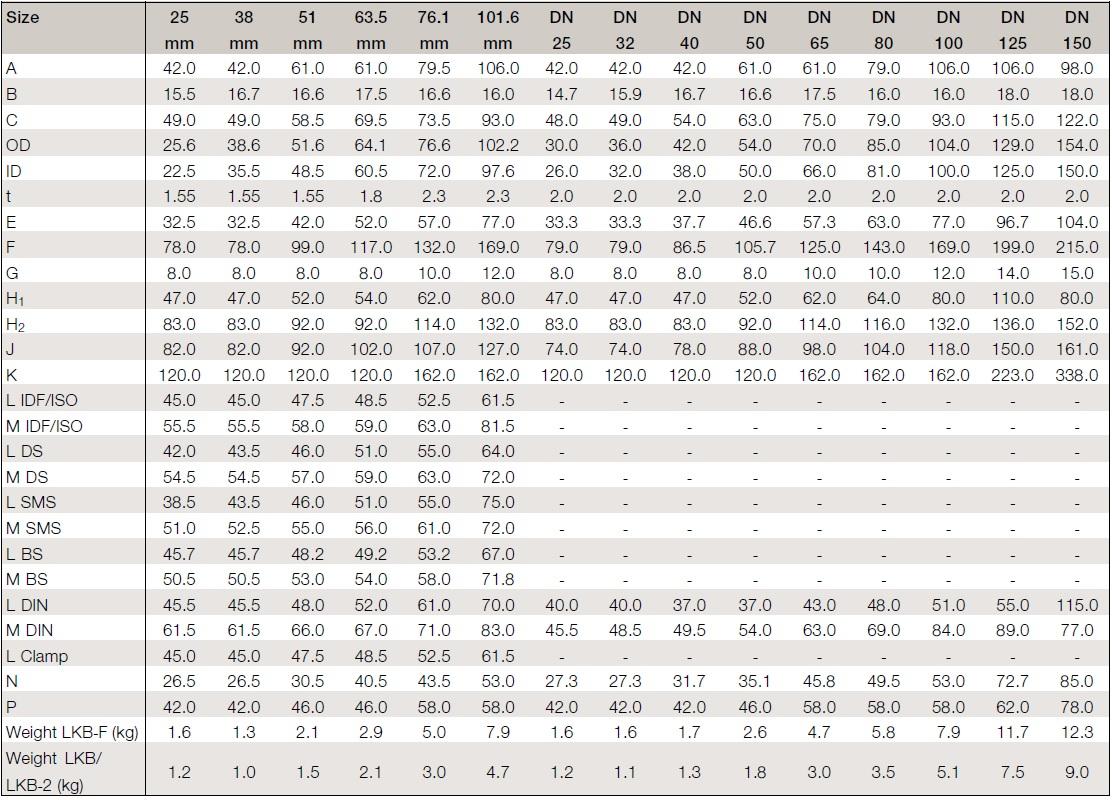

Dimensions (mm) - Valve

LKB, LKB-2, LKB-F:

NOTE! Weights are for valves with welding ends and handles.
