Description
In-line Blending-IL-16T/H在线配料单元选材精良，制作精细，凡与饮料接触部分均采用优质不绣钢，并精细抛光，完全符合食品卫生方面的要求。
In-line Blending-IL-16T/H material is excellent, made careful, all contact with the beverage part adopts high quality stainless steel, fine polishing, and fully meet the requirements of food hygiene.
本机主要特点：
Main features:
采用高精度质量流量计对原料混合比例进行精确测量和控制，容易操作和调整，能很方便地调整生产能力和水与糖浆的比例；
High precision mass flowmeter is used to accurately measure and control the mixing ratio of raw materials. It is easy to operate and adjust. It can adjust the production capacity and the ratio of water to syrup conveniently.
本机内设置了能进行热水消毒（CIP）的管路系统，从而保证了产品的卫生要求。
The machine is equipped with a piping system for hot water disinfection (CIP), thus ensuring the sanitary requirements of the product.
技术数据Technical data
蒸汽压力 steam pressure: 8bar
纯水压力 fresh water pressure: 4bar
压缩空气 Compressed air：7.5bar
供电电压Supply voltage: AC-3-480V
供电频率frequency：60HZ
额定功率Rated power：20KW
最大生产能力Maximum production capacity：16000L/H
混合比 Ratio： 1∶5
CIP压力 pressure：3.0～3.5bar
设备组成及原理Configuration
设备基本组成Main Composition
本机主要由真空脱气装置、混比装置，成品罐装置、机架、电气控制等几大部分组成。自动控制系统有流量自动控制系统、液位自动控制系统混合比例自动控制系统和整机运行电气自动控制系统。(如图1-1)
The machine is mainly composed of vacuum degassing device, mixing ratio device, product tank, rack, electrical control system and so on. The automatic control system includes automatic flow control system, automatic liquid level control system, automatic mixing proportion control system.
基本原理 Principles
本机主要运行原理是：纯水经接管孔板 ，然后通过喷射喷嘴进行真空脱气后进入水罐 ；糖浆则经接管孔板 进入糖浆罐 。水和糖分别经；流量计和混合阀 ，按照要求配比后进入混合罐 。再由输出增压泵将成品输送到灌装设备中去。（参见图1-3-2）
The main operating principle of the machine is as follows: the pure water passes through the orifice of the transfer panel , and then enters the water tank after vacuum degassing through the jet nozzle; The syrup enters the syrup buffer tank through the orifice . Water and syrup respectively through the mass flow meter and mixing valve , according to the required ratio into the mixing tank . Then the output booster pump will be delivered to the filling equipment.
流程界面 Process Interface
显示系统各传感器及执行器的工作状态，可对阀门及泵手动强制输出。
It displays the working status of each sensor and actuator of the system, and can manually force the output of the valves and pumps.
主要部件Main Components
Transducers

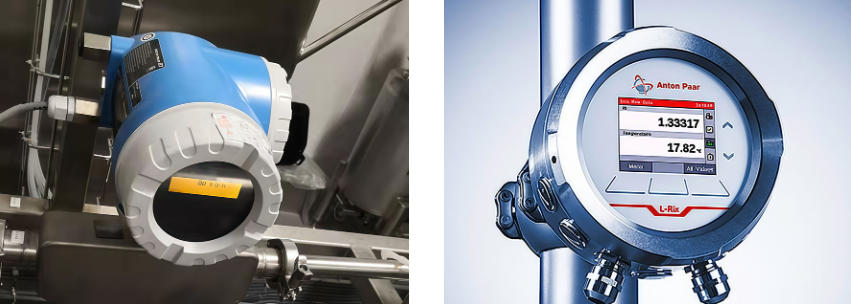

质量流量计 Mass flow meter
在线折光仪（糖度计 Brix meter）
